System

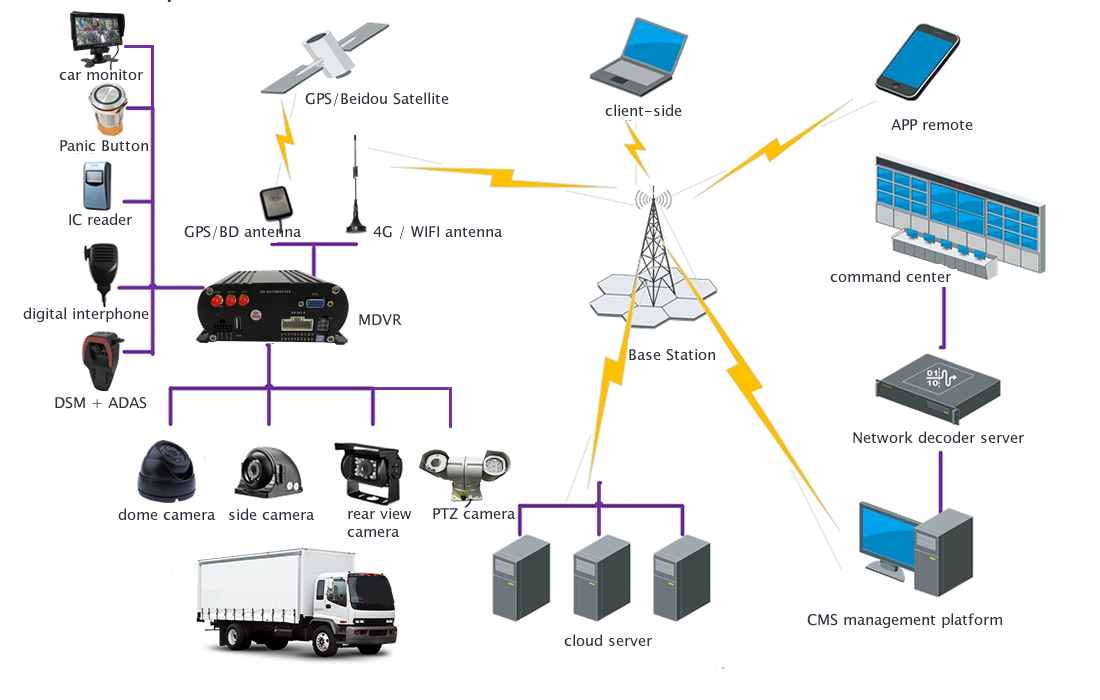

The system encodes and stores audio, video, GPS, and alarm data through the MDVR host. And through the Wifi/4G mobile network to complete the audio and video, alarm information, GPS data upload; at the same time to achieve remote upgrade of equipment, parameter modification, digital intercom, remote capture and other remote management operations.

The server monitoring center administrator only needs to authorize the corresponding vehicle through the server background software, and generate the corresponding account and password to manage it uniformly. At the same time, other accounts can be created through the web client for real-time viewing and management on other phones and computers.

Details

The 3G/4G vehicle intelligent monitoring system includes a front-end vehicle monitoring system, a mobile communication network, and a server monitoring center. Designed with advanced, practical, expandable, reliable, safe, and easy-to-use design principles; system, flexibility, efficiency, and stability.

A: Front-end vehicle monitoring system

The front-end vehicle monitoring system is an important part of the whole program. It is to install audio and video data in and out of the car to achieve safe and dead angle monitoring. It also uses GPS global satellite positioning system to realize real-time positioning of vehicles. At the same time, external car alarm switch The corresponding alarm prompts (such as: alarm button, brake, magnetic switch, etc.) can be realized; the intercom between the platform and the single/multiple vehicles can be realized after the digital walkie-talkie is configured; the fatigue pilot can be equipped to monitor the fatigue state of the driver. To prevent traffic accidents (the cold chain logistics vehicle is equipped with a temperature sensor, which can monitor the temperature inside the cabin in real time); after the equipment terminal is installed with the fuel quantity sensor, the monitoring center can get an abnormal alarm of the oil quantity in time to prevent theft of oil. And through the car MDVR host to encode audio and video, GPS, alarm data, storage and 3G/4G wireless network reporting server, thus achieving remote monitoring and management of vehicles.

Camera installation position (multiple compartment surveillance cameras are available depending on the size of the vehicle):

1) Front view camera: driving recorder function;

2) Driving position camera: standardize operation, anti-robbery and alarm;

3) Fuel tank position camera: stealing oil monitoring;

4) Camera outside the car: car monitoring, throwing objects;

5) Camera outside the car: car monitoring, throwing objects;

6) Camera inside the car: car monitoring, throwing objects;

7) Camera inside the car: monitoring the condition of the cargo in the car;

8) Rear camera: rear view road conditions, throwing objects view;

B: Mobile communication network

Since the monitoring points of the front-end vehicle monitoring system are in a constantly moving environment, audio, video, GPS and alarm data can only be transmitted through the 3G/4G mobile network. At the same time, remote management operations such as remote upgrade of equipment, modification of equipment parameters, digital intercom and alarm information viewing can be completed through the 3G/4G mobile network.

C: Server Monitoring Center

The server monitoring center is a remote monitoring and management center consisting of a server group, background management software and client software. It adopts a centralized and distributed network management architecture, which can realize remote real-time monitoring, video recording and capture of multiple vehicles at the same time. Search, download, analysis and playback; combined with Google electronic map to view the vehicle distribution status; query driving trajectory and playback; view alarm information, quickly locate the location of the alarm vehicle and live video. At the same time, the WiFi automatic download server is configured in the parking lot where the vehicle is concentrated, and the monitoring video file can be automatically downloaded to the designated server storage.

The server monitoring center administrator only needs to authorize the corresponding vehicle through the server background software, and generate the corresponding account and password to manage it uniformly. At the same time, other accounts can be created through the web client for real-time viewing and management on other phones and computers.
